|Alloy:||1060 Alloy||Type:||1060 Aluminum Alloy Sheet, Aluminum Alloy Plate|
|Common Used Thickness:||0.2-300 Mm||Width:||800, 1000, 1220, 1250, 1500 Or As You Required..|
|Length:||500-16000mm, Or As You Required||Sample:||Yes, Free Sample|
|Customized Service:||Yes||Moq:||500 Kgs|

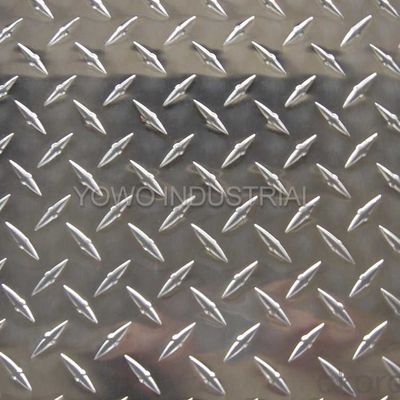

5.0mm Aluminum Embossed Plate,
5.0mm aluminium checker sheet,
1060 Alloy Aluminum Embossed Plate
According to the different types of aluminum alloys,aluminum embossed sheet (tread plate, checkered sheet plate) can be divided into the following categories
1. General tread aluminum alloy plate:
1060 aluminum plate for the plate from the processing of aluminum alloy pattern plate, able to adapt to the normal environment, low prices.
Usually cold storage, flooring, packaging and more use of this pattern aluminum sheet.
2. Al-Mn alloy tread plate:
3003 as the main raw material processing, the aluminum plate, also known as rust-proof aluminum, the strength is slightly higher than the ordinary aluminum alloy pattern plate, with a certain anti-rust properties, but the hardness and corrosion resistance less than 5,000 series of pattern plate, so the product is not strictly used in the anti-rust, such as truck models, cold storage floor.
3. Aluminum-magnesium alloy tread plate:
5052 or 5083, such as 5000 series of aluminum as raw material processing, with good corrosion resistance, hardness, anti-rust performance.
Usually used in special places, such as ships, cars lights, humid environment, the high hardness of aluminum, a certain load-bearing capacity.
In accordance with the different patterns of aluminum plate classification: pattern plate has a bar, two bars, three bars and five bars.
|Aluminium Embossed Sheet, Aluminum Tread/Checkered sheet plate|
|Alloy (not all alloy)||1050/1060/1100/3003/5754/5083/6061/6063/6060/6082/8011|
|Temper||H14, H18, H24, H32, H112, H114, T4, T6, T651, O|
|Thickness (mm)||0.7mm to 20mm|
|Width (mm)||Up to 1650mm|
|Length (mm)||Up to 6000mm|
|Application||1)Decorated inside and outside the car /building frame, windows, doors, ceiling, decorating panel and curtain wall|
|2)Household appliances: refrigerators, microwave ovens, audio equipment, etc.|
|Delivery time||20-35 days after received the payment|
|Payment terms||L/C T/T|
|Mark||Customized service is available, pls contact us for more details and best price!|
3. Workshop floors
4. Building floors and steps
5. Antiskid floor of bus
7. Tread board
8. Stair tread
9. Vehicle step
