Product Details:
|
| Alloy: | 1060 1100 3003 | Type: | Aluminum Checkered Sheet, Plate |
|---|---|---|---|
| Common Used Thickness: | 0.2-300 Mm | Width: | 800, 1000, 1220, 1250, 1500 Or As You Required.. |
| Length: | 500-16000mm, Or As You Required | Sample: | Yes, Free Sample |
| Customized Service: | Yes | Moq: | 500 Kgs |
| High Light: | 1.0mm 1100 Aluminum Checker Plate,CE 2440mm Length Aluminum Checker Plate,2440mm Length chequered aluminium plate |
||
Specifications of Aluminum tread plate:
| Product | 1050,1060, 1100 Aluminum Sheet from China | |
| Standard | GB/T3190-2008,GB/T3880-2006,ASTM B209,JIS H4000-2006,etc | |
| Material | 1 Series: 1050 1060 1070 1100 1200 1235 etc. 2 Series: 2024 2030 etc. 3 Series: 3003 3005 3104 3105 etc. 5 Series: 5005 5052 5054 5056 5083 5086 5154 5182 5754 etc. 6 Series: 6060 6061 6063 etc. 7 Series: 7005 7050 7075 7475 etc. 8 Series: 8006 8011 8079 |
|
| Size | Thickness | 0.12-4mm |
| Width | 100-2000mm | |
| Length | 2000mm,2440mm,6000mm,or as required. | |
| Quality control | Mill Test Certification is supplied with shipment,Third Part Inspection is acceptable. | |
| Surface | Bright,polished,hair line,brush,sand blast,checkered,embossed,etching,etc | |
| Trade terms | Price term | Ex-Work,FOB,CNF,CFR,etc |
| Payment Term | TT,L/C,western Union,etc | |
| MOQ | 20TON | |
| Delivery time | 1.The products in stock will delivery immediately received the payment. 2.According to the order quantity,prompt delivery. |
|
| Export to | Ireland, Singapore, Indonesia, Ukraine, Spain, Canada, USA, Brazil, Thailand, Korea, Iran, India, Egypt, Kuwait, Oman, Viet Nam, South Africa, Dubai,Russia, England, Holland, etc. |
|
| Package | Standard export package,such as wooden box or as required. | |
| Application | 1)Further making utensil. 2)Solar reflective film 3)The appearance of the building 4)Interior decorating:ceilings,walls,etc. 5)Furniture cabinets 6)Elevator decoraction 7)Signs,nameplate,bags making. 8)Decorated inside and outside the car 9)Household appliances:refrigerators,microwave ovens,audio equipment,etc. 10)The consumer electronics:mobile phones,digital cameras,MP3,U disk,etc. |
|
Chemical Composition:
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | OTHERS | OTHERS | Al |
| 1050 | 0.25 | 0.4 | 0.05 | 0.05 | 0.05 | — | 0.05 | 0.03 | 0.03 | — | 99.5 |
| 1070 | 0.2 | 0.25 | 0.04 | 0.03 | 0.03 | — | 0.04 | 0.03 | 0.03 | — | 99.7 |
| 1100 | 0.95 Si + Fe | 0.05-0.20 | 0.05 | — | — | 0.1 | — | 0.05 | 0.15 | 99 | |
| 2024 | 0.5 | 0.5 | 3.8-4.9 | 0.30-0.9 | 1.2-1.8 | 0.1 | 0.25 | 0.15 | 0.05 | 0.15 | Rem. |
| 3003 | 0.6 | 0.7 | 0.05-0.20 | 1.0-1.5 | — | — | 0.1 | — | 0.05 | 0.15 | Rem. |
| 3004 | 0.3 | 0.7 | 0.25 | 1.0-1.5 | 0.8-1.3 | — | 0.25 | — | 0.05 | 0.15 | Rem. |
| 3005 | 0.6 | 0.7 | 0.3 | 1.0-1.5 | 0.20-0.6 | 0.1 | 0.25 | 0.1 | 0.05 | 0.15 | Rem. |
| 5005 | 0.3 | 0.7 | 0.2 | 0.2 | 0.50-1.1 | 0.1 | 0.25 | — | 0.05 | 0.15 | Rem. |
| 5052 | 0.25 | 0.4 | 0.1 | 0.1 | 2.2-2.8 | 0.15-0.35 | 0.1 | — | 0.05 | 0.15 | Rem. |
| 5252 | 0.08 | 0.1 | 0.1 | 0.1 | 2.2-2.8 | — | 0.05 | — | 0.03 | 0.1 | Rem. |
| 6061 | 0.40-0.8 | 0.7 | 0.15-0.40 | 0.15 | 0.8-1.2 | 0.04-0.35 | 0.25 | 0.15 | 0.05 | 0.15 | Rem. |
| 7075 | 0.4 | 0.5 | 1.2-2.0 | 0.3 | 2.1-2.9 | 0.18-0.28 | 5.1-6.1 | 0.2 | 0.05 | 0.15 | Rem. |

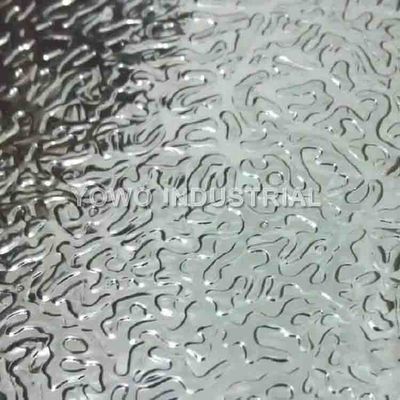

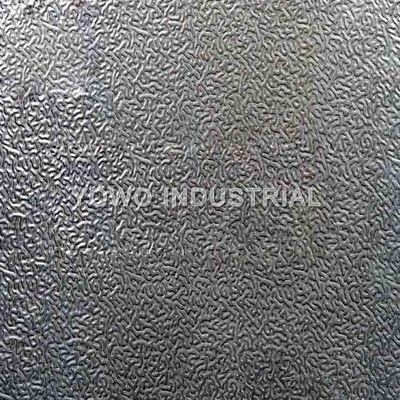

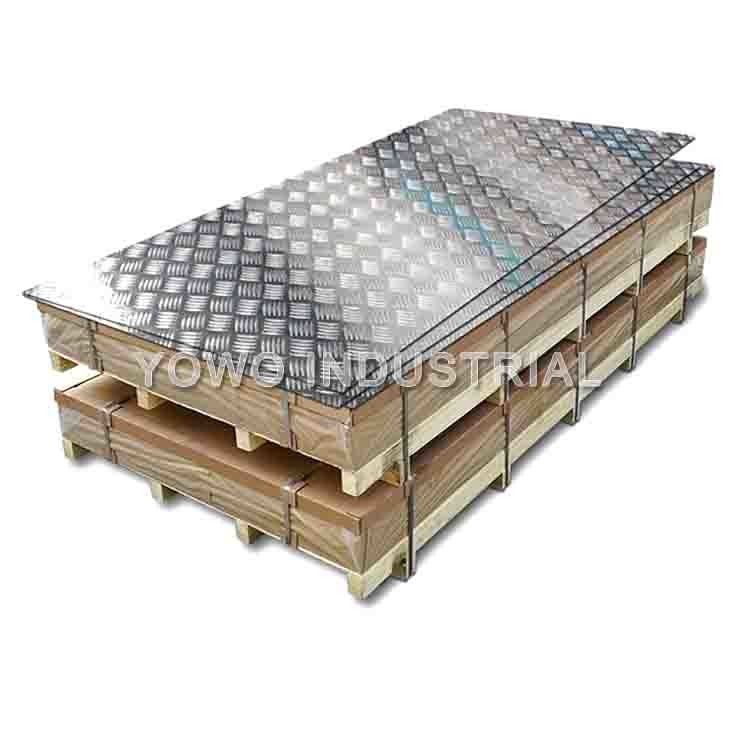

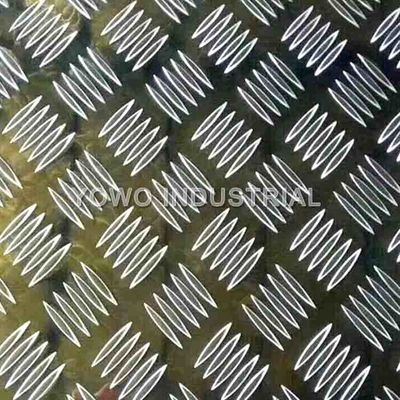

Detailed pictures:
| Container Loading Capacity | |||||
| Type | Length | Width | Height | Volume | Max Weight |
| 20FT GP | 5.8m | 2.13m | 2.18m | 24-26CBM | 25MT |
| 40FT GP | 11.8m | 2.13m | 2.18m | 54CBM | 25MT |
| 40FT HP | 11.8m | 2.13m | 2.72m | 68CBM | 26MT |
| FCL(full container load), LCL(less than container load), or Bulk-cargo. | |||||
| According to the quantity or volume, you can choose! | |||||
Applications
1.Ship deck
2. Autos
3. Workshop floors
4. Building floors and steps
5. Antiskid floor of bus
6. Elevator
7. Tread board
8. Stair tread
9. Vehicle step
