Product Details:
|
| Alloy: | 3003 | Type: | Aluminum Checkered Sheet, Plate |
|---|---|---|---|
| Common Used Thickness: | 0.2-300 Mm | Width: | 800, 1000, 1220, 1250, 1500 Or As You Required.. |
| Length: | 500-16000mm, Or As You Required | Sample: | Yes, Free Sample |
| Customized Service: | Yes | Moq: | 500 Kgs |
| High Light: | 4.0mm 3003 Aluminum Checker Plate,1220mm Width Aluminum Checker Plate,1220mm Width aluminum checkered sheet |
||
Specifications:
| Product | 1050,1060, 1100 Aluminum Sheet from China | |
| Standard | GB/T3190-2008,GB/T3880-2006,ASTM B209,JIS H4000-2006,etc | |
| Material | 1 Series: 1050 1060 1070 1100 1200 1235 etc. 2 Series: 2024 2030 etc. 3 Series: 3003 3005 3104 3105 etc. 5 Series: 5005 5052 5054 5056 5083 5086 5154 5182 5754 etc. 6 Series: 6060 6061 6063 etc. 7 Series: 7005 7050 7075 7475 etc. 8 Series: 8006 8011 8079 |
|
| Size | Thickness | 0.12-4mm |
| Width | 100-2000mm | |
| Length | 2000mm,2440mm,6000mm,or as required. | |
| Quality control | Mill Test Certification is supplied with shipment,Third Part Inspection is acceptable. | |
| Surface | Bright,polished,hair line,brush,sand blast,checkered,embossed,etching,etc | |
| Trade terms | Price term | Ex-Work,FOB,CNF,CFR,etc |
| Payment Term | TT,L/C,western Union,etc | |
| MOQ | 20TON | |
| Delivery time | 1.The products in stock will delivery immediately received the payment. 2.According to the order quantity,prompt delivery. |
|
| Export to | Ireland, Singapore, Indonesia, Ukraine, Spain, Canada, USA, Brazil, Thailand, Korea, Iran, India, Egypt, Kuwait, Oman, Viet Nam, South Africa, Dubai,Russia, England, Holland, etc. |
|
| Package | Standard export package,such as wooden box or as required. | |
| Application | 1)Further making utensil. 2)Solar reflective film 3)The appearance of the building 4)Interior decorating:ceilings,walls,etc. 5)Furniture cabinets 6)Elevator decoraction 7)Signs,nameplate,bags making. 8)Decorated inside and outside the car 9)Household appliances:refrigerators,microwave ovens,audio equipment,etc. 10)The consumer electronics:mobile phones,digital cameras,MP3,U disk,etc. |
|
Chemical Composition:
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | OTHERS | OTHERS | Al |
| 1050 | 0.25 | 0.4 | 0.05 | 0.05 | 0.05 | — | 0.05 | 0.03 | 0.03 | — | 99.5 |
| 1070 | 0.2 | 0.25 | 0.04 | 0.03 | 0.03 | — | 0.04 | 0.03 | 0.03 | — | 99.7 |
| 1100 | 0.95 Si + Fe | 0.05-0.20 | 0.05 | — | — | 0.1 | — | 0.05 | 0.15 | 99 | |
| 2024 | 0.5 | 0.5 | 3.8-4.9 | 0.30-0.9 | 1.2-1.8 | 0.1 | 0.25 | 0.15 | 0.05 | 0.15 | Rem. |
| 3003 | 0.6 | 0.7 | 0.05-0.20 | 1.0-1.5 | — | — | 0.1 | — | 0.05 | 0.15 | Rem. |
| 3004 | 0.3 | 0.7 | 0.25 | 1.0-1.5 | 0.8-1.3 | — | 0.25 | — | 0.05 | 0.15 | Rem. |
| 3005 | 0.6 | 0.7 | 0.3 | 1.0-1.5 | 0.20-0.6 | 0.1 | 0.25 | 0.1 | 0.05 | 0.15 | Rem. |
| 5005 | 0.3 | 0.7 | 0.2 | 0.2 | 0.50-1.1 | 0.1 | 0.25 | — | 0.05 | 0.15 | Rem. |
| 5052 | 0.25 | 0.4 | 0.1 | 0.1 | 2.2-2.8 | 0.15-0.35 | 0.1 | — | 0.05 | 0.15 | Rem. |
| 5252 | 0.08 | 0.1 | 0.1 | 0.1 | 2.2-2.8 | — | 0.05 | — | 0.03 | 0.1 | Rem. |
| 6061 | 0.40-0.8 | 0.7 | 0.15-0.40 | 0.15 | 0.8-1.2 | 0.04-0.35 | 0.25 | 0.15 | 0.05 | 0.15 | Rem. |
| 7075 | 0.4 | 0.5 | 1.2-2.0 | 0.3 | 2.1-2.9 | 0.18-0.28 | 5.1-6.1 | 0.2 | 0.05 | 0.15 | Rem. |
Mechanical Property:
| Alloy | Sheet/coil | Temper | Thickness | Tensile strength σb/Mpa |
Extending rate δ10/% |
Type | |
| 1200 | sheet | O | 0.3-0.5 0.51-0.9 0.91-6.0 |
≤100 | ≥20 ≥25 ≥28 |
DC/CC | |
| 1070A | |||||||
| 1060 | H14 | 0.3-0.4 0.41-0.7 0.71-1.0 1.1-6.0 |
≥100 | ≥3 ≥4 ≥5 ≥6 |
|||
| 1050 | |||||||
| 1035 | H18 | 0.3-0.9 0.91-4.0 4.1-6.0 |
≥140 ≥140 ≥130 |
≥2 ≥3 ≥4 |
|||
| 1100 | |||||||
| 1070A | Coil | O | 0.006 0.007-0.010 0.012-0.025 0.026-0.040 0.050-0.020 |
≥30 ≥30 ≥30 ≥40 |
≥0.5 ≥1.0 ≥2.0 ≥3.0 |
||
| 1060 | |||||||
| 1050A | |||||||
| 1035 | H18 | ≥100 ≥100 ≥100 ≥120 |
≥0.5 ≥0.5 |
||||
| 1200 | |||||||

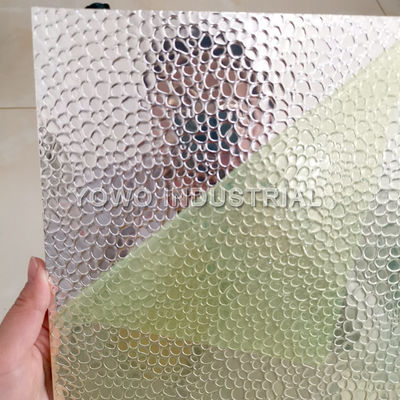

Detailed pictures:
According to the different types of aluminum alloys, aluminum embossed sheet (tread plate, checkered sheet plate) can be divided into the following categories
1. General tread aluminum alloy plate:
1060 aluminum plate for the plate from the processing of aluminum alloy pattern plate, able to adapt to the normal environment, low prices.
Usually cold storage, flooring, packaging and more use of this pattern aluminum sheet.
2. Al-Mn alloy tread plate:
3003 as the main raw material processing, the aluminum plate, also known as rust-proof aluminum, the strength is slightly higher than the ordinary aluminum alloy pattern plate, with a certain anti-rust properties, but the hardness and corrosion resistance less than 5,000 series of pattern plate, so the product is not strictly used in the anti-rust, such as truck models, cold storage floor.
3. Aluminum-magnesium alloy tread plate:
5052 or 5083, such as 5000 series of aluminum as raw material processing, with good corrosion resistance, hardness, anti-rust performance.
Usually used in special places, such as ships, cars lights, humid environment, the high hardness of aluminum, a certain load-bearing capacity.
In accordance with the different patterns of aluminum plate classification: pattern plate has a bar, two bars, three bars and five bars.
| Container Loading Capacity | |||||
| Type | Length | Width | Height | Volume | Max Weight |
| 20FT GP | 5.8m | 2.13m | 2.18m | 24-26CBM | 25MT |
| 40FT GP | 11.8m | 2.13m | 2.18m | 54CBM | 25MT |
| 40FT HP | 11.8m | 2.13m | 2.72m | 68CBM | 26MT |
| FCL(full container load), LCL(less than container load), or Bulk-cargo. | |||||
| According to the quantity or volume, you can choose! | |||||
Applications
1.Ship deck
2. Autos
3. Workshop floors
4. Building floors and steps
5. Antiskid floor of bus
6. Elevator
7. Tread board
8. Stair tread
9. Vehicle step
