Product Details:
|
| Type: | Aluminum Sheet, Plate, Coil | Alloy: | 1050, 1060, 1100 |
|---|---|---|---|
| Temper: | O - H112 | Thickness: | 0.1-500mm |
| Width: | 200-2300mm | Length: | 500 To 16000mm, Or As You Requested |
| Sample: | Can Be Provided | Note: | Customized Service Is Available |
| Delivery Time: | 15-35 Days | ||
| High Light: | 6.0mm 1000 Series Aluminum Sheet,Aa1100 Aluminum Sheet Coil,Aa1100 aluminum panel sheet |
||
Specifications:
| Alloy Series | Typical Alloy | Typical Temper | Specifications | ||
| Thickness(mm) | Width(mm) | Length(mm) | |||
| 1xxx |
1050 1060 1070 1100 |
O H12 H14 H18 H24 H16 H111 | 0.2-4 | 500-2800 | 500-6000 |
| 3xxx |
3003 3004 3005 3105 |
O H12 H14 H16 H18 H22 H24 H26 H32 H34 H38 H111 H112 | 0.2-4 | 500-2800 | 500-6000 |
| 5xxx | 5005 5052 5754 5083 5182 5454 5086 5A02 | O H12 H14 H16 H18 H22 H24 H26 H32 H34 H38 H111 H112 | 0.2-4 | 500-2800 | 500-6000 |
|
2xxx 6xxx 7xxx |
2024 2A12 6061 6082 7050 7075 | T4 T6 O T651 | 0.2-4 | 500-2800 | 500-6000 |
Chemical composition:
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | OTHERS | OTHERS | Al |
| 1050 | 0.25 | 0.4 | 0.05 | 0.05 | 0.05 | — | 0.05 | 0.03 | 0.03 | — | 99.5 |
| 1070 | 0.2 | 0.25 | 0.04 | 0.03 | 0.03 | — | 0.04 | 0.03 | 0.03 | — | 99.7 |
| 1100 | 0.95 Si + Fe | 0.05-0.20 | 0.05 | — | — | 0.1 | — | 0.05 | 0.15 | 99 | |
| 2024 | 0.5 | 0.5 | 3.8-4.9 | 0.30-0.9 | 1.2-1.8 | 0.1 | 0.25 | 0.15 | 0.05 | 0.15 | Rem. |
| 3003 | 0.6 | 0.7 | 0.05-0.20 | 1.0-1.5 | — | — | 0.1 | — | 0.05 | 0.15 | Rem. |
| 3004 | 0.3 | 0.7 | 0.25 | 1.0-1.5 | 0.8-1.3 | — | 0.25 | — | 0.05 | 0.15 | Rem. |
| 3005 | 0.6 | 0.7 | 0.3 | 1.0-1.5 | 0.20-0.6 | 0.1 | 0.25 | 0.1 | 0.05 | 0.15 | Rem. |
| 5005 | 0.3 | 0.7 | 0.2 | 0.2 | 0.50-1.1 | 0.1 | 0.25 | — | 0.05 | 0.15 | Rem. |
| 5052 | 0.25 | 0.4 | 0.1 | 0.1 | 2.2-2.8 | 0.15-0.35 | 0.1 | — | 0.05 | 0.15 | Rem. |
| 5252 | 0.08 | 0.1 | 0.1 | 0.1 | 2.2-2.8 | — | 0.05 | — | 0.03 | 0.1 | Rem. |
| 6061 | 0.40-0.8 | 0.7 | 0.15-0.40 | 0.15 | 0.8-1.2 | 0.04-0.35 | 0.25 | 0.15 | 0.05 | 0.15 | Rem. |
| 7075 | 0.4 | 0.5 | 1.2-2.0 | 0.3 | 2.1-2.9 | 0.18-0.28 | 5.1-6.1 | 0.2 | 0.05 | 0.15 | Rem. |
| Mechanical Property | ||||||||
| ALUMINUM | Grade | Normal | Temper | Tensile Strength | Yield Strength | Elongation% | Brinell Hardness | |
| ALLOY | Temper | N/mm² | N/mm² | Plate | Bar | HB | ||
| 1XXX | 1050 | O,H112,H | O | 78 | 34 | 40 | - | 20 |
| 1060 | O,H112,H | O | 70 | 30 | 43 | - | 19 | |
| Al-Cu | 2019 | O,T3,T4,T6,T8 | T851 | 450 | 350 | 10 | - | - |
| (2XXX) | 2024 | O,T4 | T4 | 470 | 325 | 20 | 17 | 120 |
| Al-Mn | 3003 | O | 110 | 40 | 30 | 37 | 28 | |
| (3XXX) | 3004 | O,H112,H | O | 180 | 70 | 20 | 22 | 45 |
| Al-Si (4XXX) | 4032 | O,T6,T62 | T6 | 380 | 315 | - | 9 | 120 |
| Al-Mg | 5052 | O,H112,H | H34 | 260 | 215 | 10 | 12 | 68 |
| (5XXX) | 5083 | O,H112,H | O | 290 | 145 | - | 20 | - |
| Al-Mg-Si | 6061 | O,T4,T6,T8 | T6 | 310 | 275 | 12 | 15 | 95 |
| (6XXX) | 6063 | O,T1,T5,T6,T8 | T5 | 185 | 145 | 12 | - | 60 |
| Al-Zn-Mg | 7003 | T5 | T5 | 315 | 255 | 15 | - | 85 |
| (7XXX) | 7075 | O,T6 | T6 | 570 | 505 | 11 | 9 | 150 |
Packaging:
Standard seaworthy package. Wooden pallets with plastics protection for the coil and sheet, or to be packed as your requests.
Loading:
Total quantity from 0-50 tons, can be shipped by containers.
More than 50 tons, can be shipped by bulk vessel.
20 ft container: can load width below 2300mm, length 6000 max.
40 ft container: can load width below 2300mm, length below 12000mm
Product introduction:
It has the characteristics of high plasticity, corrosion resistance, good electrical conductivity and thermal conductivity.
1100 belongs to a product in the pure aluminum plate series, and the chemical composition and mechanical properties of the 1060 series are similar. It is basically replaced by 1060 in current applications.
1100 aluminum alloy is ordinary industrial pure aluminum with 99.0% aluminum content. It cannot be strengthened by heat treatment; the strength is low, but it has good ductility, formability, weldability and corrosion resistance. After anodic oxidation, it can further improve its corrosion resistance while obtaining a beautiful surface.
Various aluminum materials can be produced through pressure processing, but the strength is low. Other process performance is basically the same as 1050A.
Typical use
1100 is usually used for parts that require good forming and processing performance, high corrosion resistance, and do not need high strength, such as food and chemical handling and storage equipment, sheet metal products, hollow hardware processed by drawing cargo spinning, and welding combination keys , Reflectors, nameplates, etc.

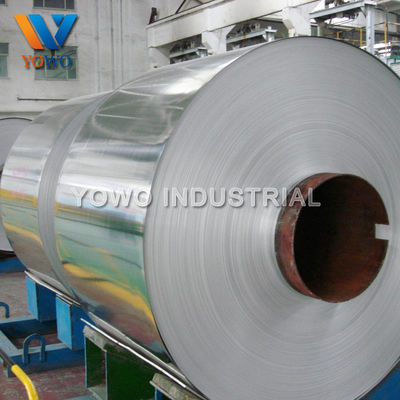

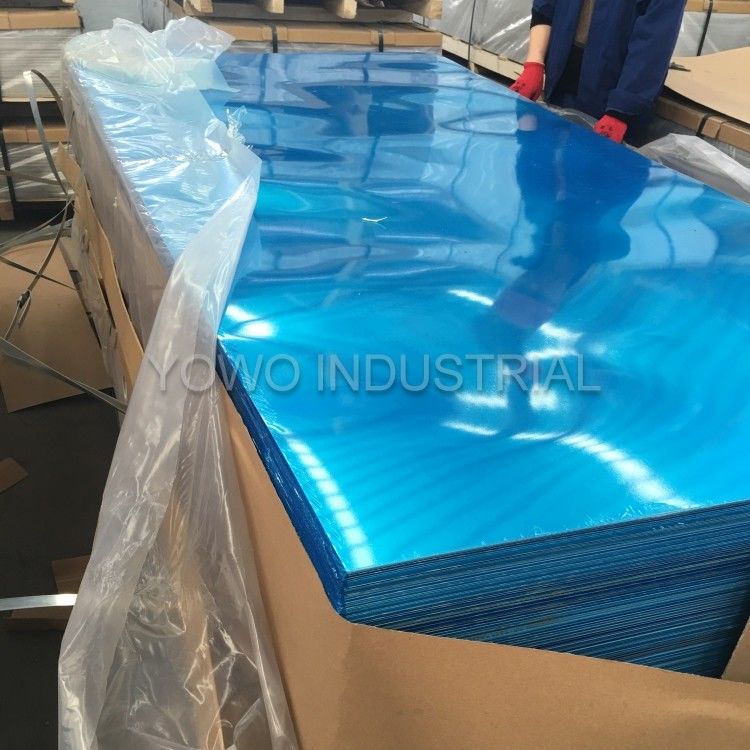

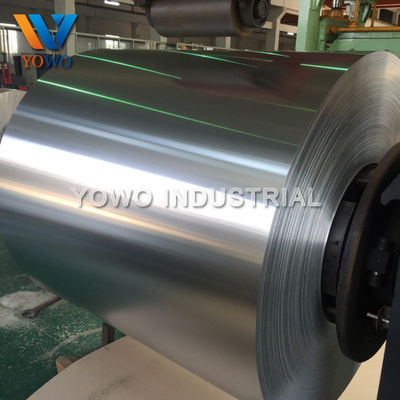

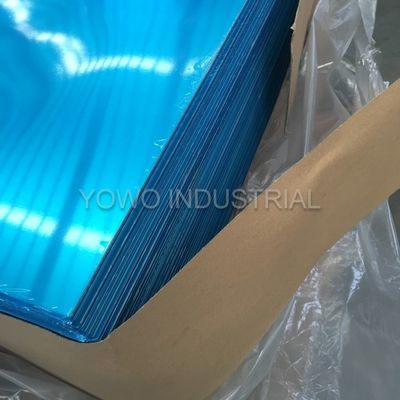

Product pictures display:
