Product Details:
|
Type: | Aluminum Coil Rolls | Alloy: | 3004 |
---|---|---|---|
Temper: | F, O, H111, H12, H14, H16, H18, H22, H24, H26, H28, H32, H34, H36, H38 | Thickness: | 0.10-350mm |
Width: | 50-2500mm | Length: | In Coil Or To Be Cut As Requested |
Sample: | For Free | Note: | Customized Service Is Available |
Delivery Time: | 15-30 Days | MOQ: | 3 Tons, Less Quantity Accepted For Trial Order |
High Light: | Mill Finish 3004 Aluminum Coil Rolls,2500mm Length Aluminum Coil Rolls,2500mm Length aluminium coil sheet |
Specifications:
Product | Aluminum coil rolls, Aluminum sheet plate |
Alloy | 1000, 2000, 3000, 5000, 6000, 7000series |
Common alloy | 1000 Series: 1050 1060 1070 1100 1200 1235 etc. 3000 Series: 3003 3004 3005 3104 3105 3A21 etc. 5000 Series: 5005 5052 5083 5086 5154 5182 5251 5754 etc. 6000 Series: 6061 6063 6082 6A02 etc. 7000 Series: 7075 7050 7475 etc. |
Temper | O, H12, H14, H16, H18, H22, H24, H26, H32, H34, H36, H111, H112, H116, H321 etc. T3, T4, T5, T6, T651 etc. |
Thickness | 0.12-350mm or as your requests |
Width | 50-2500mm or as your requests |
Length | As your requests. |
Production process | Hot rolled, Cold rolled |
Optional processing | Mill finish, Colored, Embossed, Mirrored, Brushed etc. |
Standard | ASTM, B209, JIS H4000-2006, GB/T2040-2012 etc. |
Product quality | Totally free from defects like white rust, edge damage, camber, dents, holes, break lines, scratches et.. |
Applications | Construction Filed, Automobile, Electronic, Ships Building Industry, Decoration, Manufacture, Machinery and Hardware Fields etc. |
Delivery time | 15-30 days |
Package | Standard seaworthy wooden pallet. |
Mark | Customized service is available. |
Chemical Composition & Mechanical properties:
Sheet 1:
Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | OTHERS | OTHERS | Al |
1050 | 0.25 | 0.4 | 0.05 | 0.05 | 0.05 | — | 0.05 | 0.03 | 0.03 | — | 99.5 |
1070 | 0.2 | 0.25 | 0.04 | 0.03 | 0.03 | — | 0.04 | 0.03 | 0.03 | — | 99.7 |
1100 | 0.95 Si + Fe | 0.05-0.20 | 0.05 | — | — | 0.1 | — | 0.05 | 0.15 | 99 | |
2024 | 0.5 | 0.5 | 3.8-4.9 | 0.30-0.9 | 1.2-1.8 | 0.1 | 0.25 | 0.15 | 0.05 | 0.15 | Rem. |
3003 | 0.6 | 0.7 | 0.05-0.20 | 1.0-1.5 | — | — | 0.1 | — | 0.05 | 0.15 | Rem. |
3004 | 0.3 | 0.7 | 0.25 | 1.0-1.5 | 0.8-1.3 | — | 0.25 | — | 0.05 | 0.15 | Rem. |
3005 | 0.6 | 0.7 | 0.3 | 1.0-1.5 | 0.20-0.6 | 0.1 | 0.25 | 0.1 | 0.05 | 0.15 | Rem. |
5005 | 0.3 | 0.7 | 0.2 | 0.2 | 0.50-1.1 | 0.1 | 0.25 | — | 0.05 | 0.15 | Rem. |
5052 | 0.25 | 0.4 | 0.1 | 0.1 | 2.2-2.8 | 0.15-0.35 | 0.1 | — | 0.05 | 0.15 | Rem. |
5252 | 0.08 | 0.1 | 0.1 | 0.1 | 2.2-2.8 | — | 0.05 | — | 0.03 | 0.1 | Rem. |
6061 | 0.40-0.8 | 0.7 | 0.15-0.40 | 0.15 | 0.8-1.2 | 0.04-0.35 | 0.25 | 0.15 | 0.05 | 0.15 | Rem. |
7075 | 0.4 | 0.5 | 1.2-2.0 | 0.3 | 2.1-2.9 | 0.18-0.28 | 5.1-6.1 | 0.2 | 0.05 | 0.15 | Rem. |
Sheet 2:
Surface Finish | Definition | Application |
2B | Those finished, after cold rolling, by heat treatment, picking or other equivalent treatment and lastly by cold rolling to given appropriate luster. | Medical equipment, Food industry,Construction material, Kitchen utensils. |
BA | Those processed with bright heat treament after cold rolling. | Kitchen utensils, Electric equipment, Building construction. |
NO.3 | Those finished by polishing with No.100 to No.120 abrasives specified in JIS R6001. | Kitchen utensils, Building construction. |
NO.4 | Those finished by polishing with No.150 to No.180 abrasives specified in JIS R6001. | Kitchen utensils, Building construction, Medical equipment. |
HL | Those finished polishing so as to give continuous polishing streaks by using abrasive of suitable grain size. | Building construction. |
NO.1 | The surface finished by heat treament and picking or processes corresponding there to after hot rolling. | Chemical tank, pipe. |
Packaging and Shipping:
Package:
Standard seaworthy package. Wooden pallets with plastics protection for the coil and sheet, or to be packed as your requests.
Loading:
Total quantity from 0-50 tons, can be shipped by containers.
More than 50 tons, can be shipped by bulk vessel.
20 ft container: can load width below 2300mm, length 6000 max.
40 ft container: can load width below 2300mm, length below 12000mm.
Packaging can also be customized as your requests.

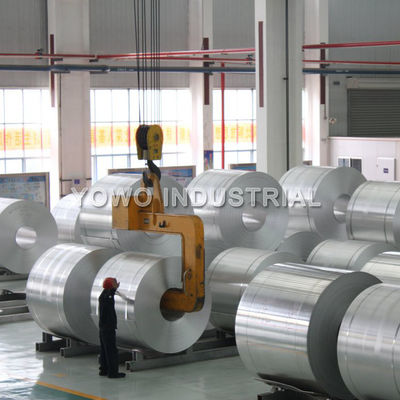

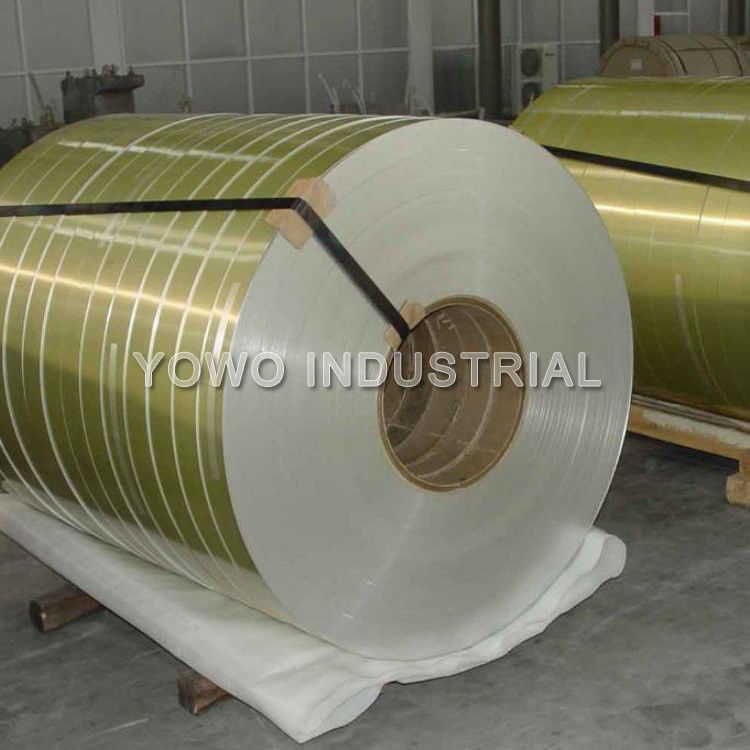

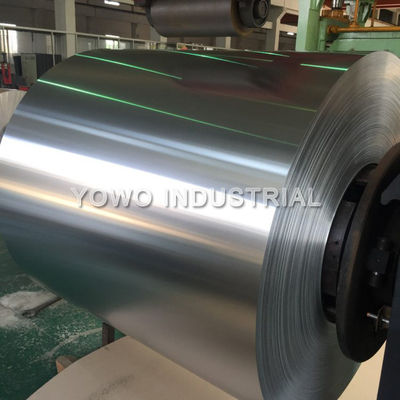

Product Details Display:
