Product Details:
|
| Type: | Aluminum Coil Rolls 3105 | Alloy: | 3105 |
|---|---|---|---|
| Temper: | F, O, H111, H12, H14, H16, H18, H22, H24, H26, H28, H32, H34, H36, H38 | Thickness: | 0.10-350mm |
| Width: | 50-2500mm | Length: | In Coil Or To Be Cut As Requested |
| Sample: | For Free | Note: | Customized Service Is Available |
| Delivery Time: | 15-30 Days | MOQ: | 3 Tons, Less Quantity Accepted For Trial Order |
| High Light: | 0.2mm 3105 Aluminum Coil Stock,Customized service 1250mm 3105 Aluminum Coil,1250mm Width Aluminum Coil Stock |
||
3105 has good anti-rust performance and good electrical conductivity. 3105 aluminum plate has high plasticity in the annealed state, good plasticity in semi-cold hardening, low plasticity in cold hardening, good corrosion resistance, good weldability, and poor machinability .
Our company supplies 3105 hot-rolled aluminum plates, 3105 ultra-wide aluminum plates, 3105 pattern aluminum plates and so on.
3105 aluminum plate has excellent performance
1. 3105 alloy aluminum plate has good electrical conductivity. Because 0.3% of copper is added to it, the electrical conductivity can reach 41%;
2. 3105 aluminum plate has good anti-rust performance and is a widely used anti-rust aluminum;
3. 3105 alloy aluminum plate has good processing performance, novel product shape and long service life;
4. Our factory strictly controls the processing quality, texture, grain structure, composition, etc. of the product, and the product performance reaches the advanced level.
Specifications:
| Aluminum | Aluminum Grade | |||
| STANDARD | ASTM B209,JIS H4000-2006,GB/T 3190-2008,GB/T 3880-2006,etc. | |||
| 1000 Series | 1050 1060 1070 1100 | |||
| 2000 Series | 2024(2A12), LY12, LY11, 2A11, 2A14(LD10), 2017, 2A17 | |||
| 3000 Series | 3A21, 3003, 3103, 3004, 3005, 3105 | |||
| 4000 Series | 4A03, 4A11, 4A13, 4A17, 4004, 4032, 4043, 4043A, 4047, 4047A | |||
| 5000 Series | 5052, 5083, 5754, 5005, 5086,5182 | |||
| 6000 Series | 6063, 6061, 6060, 6351, 6070, 6181, 6082, 6A02 | |||
| 7000 Series | 7075,7050,7A04,7472,7475 | |||
| Thickness(mm) | 0.12-350 | |||
| Width(mm) | 50-2500mm | |||
| Length(mm) | in coil shape, or as requested. | |||
| Surface | Wire drawing,oxidation,PS,Mirror surface,Embossing etc | |||
| Temper | H111, H112, H116, H321, H12, H22, H32, H14, H24, H34, H16, H26, H36, H18,,H28, H38, H114, H194, etc | |||
| Type | Coil, Sheet, Strips, Plate | |||
| Payment | L/C, T/T, D/P, West Union, etc. | |||
| Package | Standard export package,such as wooden box or as required. | |||
| Port | Tianjin, Qingdao,Shanghai | |||
Chemical Composition & Mechanical properties:
Sheet 1:
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | OTHERS | OTHERS | Al |
| 1050 | 0.25 | 0.4 | 0.05 | 0.05 | 0.05 | — | 0.05 | 0.03 | 0.03 | — | 99.5 |
| 1070 | 0.2 | 0.25 | 0.04 | 0.03 | 0.03 | — | 0.04 | 0.03 | 0.03 | — | 99.7 |
| 1100 | 0.95 Si + Fe | 0.05-0.20 | 0.05 | — | — | 0.1 | — | 0.05 | 0.15 | 99 | |
| 2024 | 0.5 | 0.5 | 3.8-4.9 | 0.30-0.9 | 1.2-1.8 | 0.1 | 0.25 | 0.15 | 0.05 | 0.15 | Rem. |
| 3003 | 0.6 | 0.7 | 0.05-0.20 | 1.0-1.5 | — | — | 0.1 | — | 0.05 | 0.15 | Rem. |
| 3004 | 0.3 | 0.7 | 0.25 | 1.0-1.5 | 0.8-1.3 | — | 0.25 | — | 0.05 | 0.15 | Rem. |
| 3005 | 0.6 | 0.7 | 0.3 | 1.0-1.5 | 0.20-0.6 | 0.1 | 0.25 | 0.1 | 0.05 | 0.15 | Rem. |
| 5005 | 0.3 | 0.7 | 0.2 | 0.2 | 0.50-1.1 | 0.1 | 0.25 | — | 0.05 | 0.15 | Rem. |
| 5052 | 0.25 | 0.4 | 0.1 | 0.1 | 2.2-2.8 | 0.15-0.35 | 0.1 | — | 0.05 | 0.15 | Rem. |
| 5252 | 0.08 | 0.1 | 0.1 | 0.1 | 2.2-2.8 | — | 0.05 | — | 0.03 | 0.1 | Rem. |
| 6061 | 0.40-0.8 | 0.7 | 0.15-0.40 | 0.15 | 0.8-1.2 | 0.04-0.35 | 0.25 | 0.15 | 0.05 | 0.15 | Rem. |
| 7075 | 0.4 | 0.5 | 1.2-2.0 | 0.3 | 2.1-2.9 | 0.18-0.28 | 5.1-6.1 | 0.2 | 0.05 | 0.15 | Rem. |
Packaging and Shipping:
Package:
Standard seaworthy package. Wooden pallets with plastics protection for the coil and sheet, or to be packed as your requests.
Loading:
Total quantity from 0-50 tons, can be shipped by containers.
More than 50 tons, can be shipped by bulk vessel.
20 ft container: can load width below 2300mm, length 6000 max.
40 ft container: can load width below 2300mm, length below 12000mm.
Packaging can also be customized as your requests.

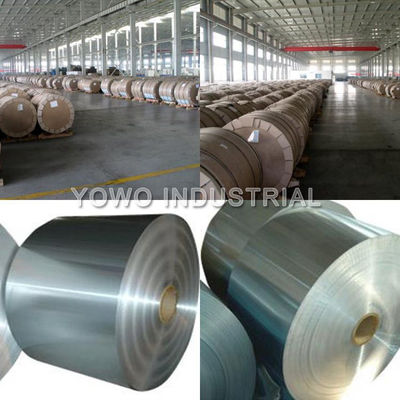

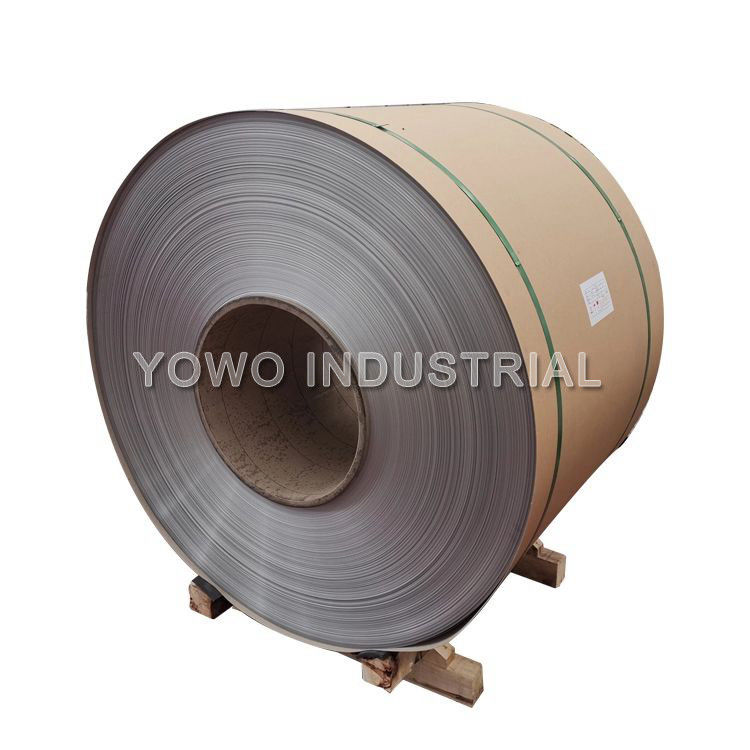

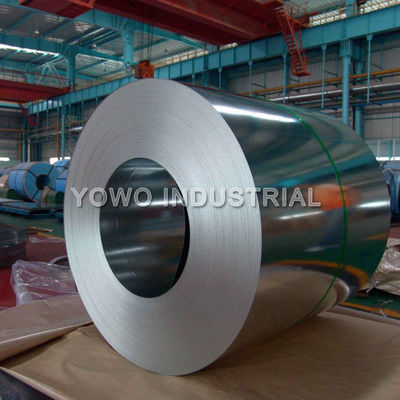

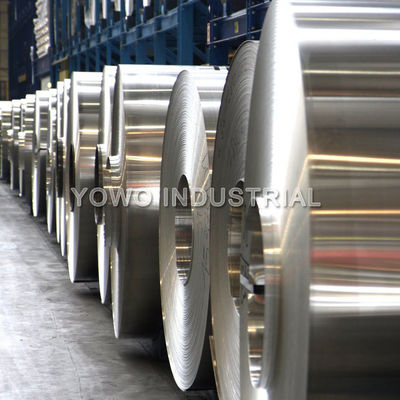

Product Details Display:
Applications:
Room partitions, baffles, movable house panels, color-coated aluminum substrates, blinds, lamp holder materials, gutters and downpipes, thin plate forming processing parts, bottle caps, bottle stoppers, etc.
|
|
| Mirror aluminum plate-interior decoration | Medicine bottle cap material |
|
|
| Bottle cap material | Aluminum substrate for color coating |
