0.3mm Aluminum Diamond Plate Wall Panels

I'm Online Chat Now

0.3mm Aluminum Diamond Plate Wall Panels

0.3mm Aluminum Diamond Plate Wall Panels
0.3mm Aluminum Diamond Plate Wall Panels 0.3mm Aluminum Diamond Plate Wall Panels 0.3mm Aluminum Diamond Plate Wall Panels

Large Image :  0.3mm Aluminum Diamond Plate Wall Panels

Product Details:
Place of Origin: CHINA
Brand Name: YOWO
Certification: CE, SGS
Model Number: 1050, 1060, 1100
Payment & Shipping Terms:
Minimum Order Quantity: 500 kgs
Price: USD 1900-3800 per ton
Packaging Details: standard seaworthy exporting package.
Delivery Time: 15-30 days
Payment Terms: L/C, T/T
Supply Ability: 10000 tons per month

0.3mm Aluminum Diamond Plate Wall Panels

Alloy: 1050, 1060, 1100 Type: 1050, 1060, 1100 Aluminum Alloy Sheet, Aluminum Alloy Plate
Common Used Thickness: 0.2-300 Mm Width: 800, 1000, 1220, 1250, 1500 Or As You Required..
Length: 500-16000mm, Or As You Required Sample: Yes, Free Sample
Customized Service: Yes Moq: 500 Kgs
High Light:

0.3mm Aluminum Diamond Plate Wall Panels


Temper H14 Aluminum Diamond Plate Wall Panels


Temper H14 aluminium checkered sheet

Embossed Aluminum Sheet 1000 Series For Sale


Alloy Sheet/coil Temper Thickness Tensile strength
Extending rate
1200 sheet O 0.3-0.5
≤100 ≥20
1060 H14 0.3-0.4
≥100 ≥3
1035 H18 0.3-0.9
1070A Coil O 0.006
1035 H18 ≥100

Common used alloy and applications:

Model Number Product Characteristics Applications
1235 1050 1060 1100 High Aluminum Content Conventional Industry
3003 3004 Rust-Proof, Suitable For Humid Environments Air Conditioning, Refrigerator, Car Bottom, and Other Humid Environments
5052 5005 5083 5754 Low Density, Anti-Stretch
Strong Extension
Aircraft Tank, Conventional Industry, Deep Processing Of Oxidation.
6061 6082 Excellent Interface Features, Corrosion Resistance, Easy To Coat, High Strength Aircraft Parts, Camera Parts, Couplings, Marine Accessories And Hardware, Electronic Accessories And Fittings, Decorative Or Various Hardware, Hinge Head, Head, Brake Piston, Hydraulic Piston, Electrical Accessories, Valves And Valve Parts.
7075 High Hardness, High Strength High Stress Structural Parts, Mold Manufacturing
8011 Easy Processing Usually Used For Processing Aluminum Foil

According to the different types of aluminum alloys,aluminum embossed sheet (tread plate, checkered sheet plate) can be divided into the following categories

1. General tread aluminum alloy plate:
1060 aluminum plate for the plate from the processing of aluminum alloy pattern plate, able to adapt to the normal environment, low prices.
Usually cold storage, flooring, packaging and more use of this pattern aluminum sheet.
2. Al-Mn alloy tread plate:
3003 as the main raw material processing, the aluminum plate, also known as rust-proof aluminum, the strength is slightly higher than the ordinary aluminum alloy pattern plate, with a certain anti-rust properties, but the hardness and corrosion resistance less than 5,000 series of pattern plate, so the product is not strictly used in the anti-rust, such as truck models, cold storage floor.
3. Aluminum-magnesium alloy tread plate:
5052 or 5083, such as 5000 series of aluminum as raw material processing, with good corrosion resistance, hardness, anti-rust performance.
Usually used in special places, such as ships, cars lights, humid environment, the high hardness of aluminum, a certain load-bearing capacity.
In accordance with the different patterns of aluminum plate classification: pattern plate has a bar, two bars, three bars and five bars.


Detailed pictures:

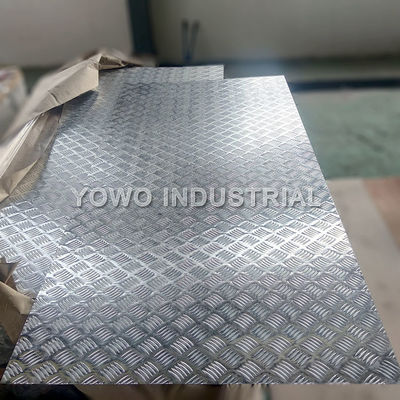

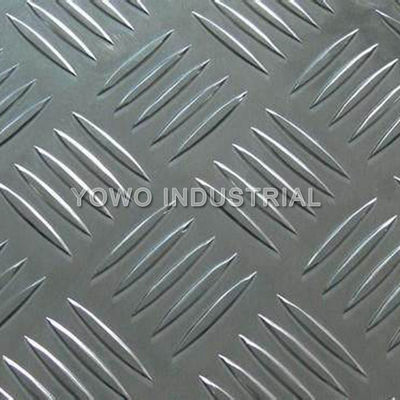

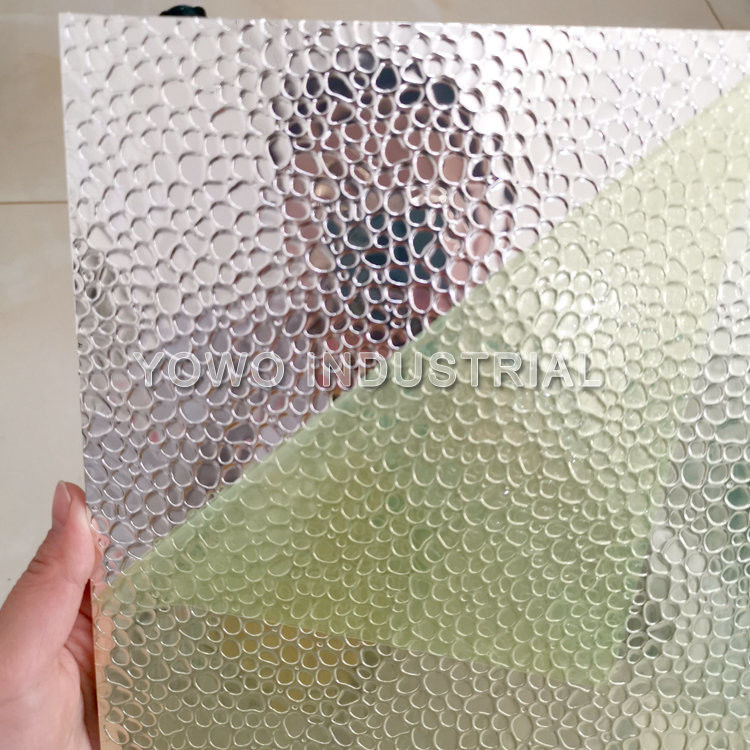

0.3mm Aluminum Diamond Plate Wall Panels 0  0.3mm Aluminum Diamond Plate Wall Panels 10.3mm Aluminum Diamond Plate Wall Panels 2

0.3mm Aluminum Diamond Plate Wall Panels 3
0.3mm Aluminum Diamond Plate Wall Panels 4


Q1: When can I get your reply after the inquiry?
A1: Within 24 hours, our professional sales team will contact you for more details and the best price.
Q2: What are the terms of payment?

A2: We accept 100% irrevocable LC at sight, deposit 30% T/T, etc.
Q3: What kinds of alloy do you supply?
A3: 1xxx-8xxxx series.
Q4: What if I want to know more details about your company and products?
A4: Please kindly contact us online for more information.

Q5: Do you offer samples?

A5: yes, samples are free.
