|Alloy:||1000, 3000, 5000 Series||Type:||Aluminum Checkered Sheet, Plate|
|Common Used Thickness:||0.2-300 Mm||Width:||800, 1000, 1220, 1250, 1500 Or As You Required..|
|Length:||500-16000mm, Or As You Required||Sample:||Yes, Free Sample|
|Customized Service:||Yes||Moq:||500 Kgs|

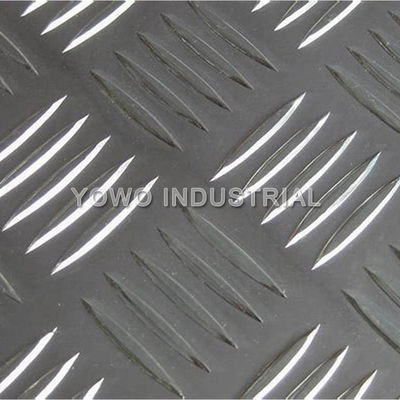

2000mm Length Chequered Aluminium Plate,
6.0mm Chequered Aluminium Plate,
6.0mm alum checker plate

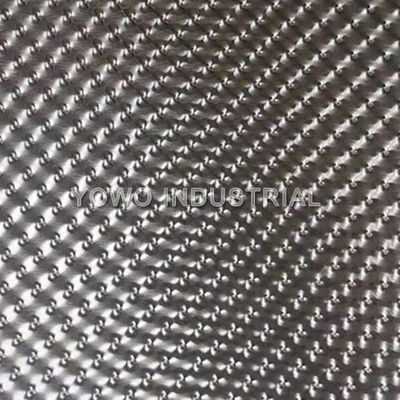

Embossed Perforated Aluminum Sheet,
Diamond Plate Aluminum Checkered Plate
|1000series: 1435, 1050, 1060, 1070, 1080, 1100, etc|
|2000series: 2011, 2014, 2017, 2024, etc|
|3000series: 3002, 3003, 3104, 3204, 3030, etc|
|5000series: 5005, 5025, 5052, 5040, 5056, 5083, etc|
|6000series: 6101, 6003, 6061, 6063, 6020, 6201, 6262, 6082, etc|
|7000series: 7003, 7005, 7050, 7075, etc|
|3.||Width||100 - 25 00mm|
|4.||Thickness||0.01 - 20 0mm|
|5.||Length||2m, 3m, 5.8m, 6m, or as required.|
|6.||Surface||Bright, Polished, Hair Line, Brush, Sand Blast, Checkered, Embossed, Etching, Powder Coating etc..|
|7.||Price Term||EXW, FOB, CFR, CIF, etc.|
|8.||Payment Term||T/T, L/C|
|5-10 days for stock products.|
|20-35 days if needs production.|
|10.||Package||Export standard package: bundled wooden box, suit for all kinds of transport, or packed as required.|
Common used alloy and applications:
|Model Number||Product Characteristics||Applications|
|1235 1050 1060 1100||High Aluminum Content||Conventional Industry|
|3003 3004||Rust-Proof, Suitable For Humid Environments||Air Conditioning, Refrigerator, Car Bottom, and Other Humid Environments|
|5052 5005 5083 5754||Low Density, Anti-Stretch
|Aircraft Tank, Conventional Industry, Deep Processing Of Oxidation.|
|6061 6082||Excellent Interface Features, Corrosion Resistance, Easy To Coat, High Strength||Aircraft Parts, Camera Parts, Couplings, Marine Accessories And Hardware, Electronic Accessories And Fittings, Decorative Or Various Hardware, Hinge Head, Head, Brake Piston, Hydraulic Piston, Electrical Accessories, Valves And Valve Parts.|
|7075||High Hardness, High Strength||High Stress Structural Parts, Mold Manufacturing|
|8011||Easy Processing||Usually Used For Processing Aluminum Foil|
According to the different types of aluminum alloys,aluminum embossed sheet (tread plate, checkered sheet plate) can be divided into the following categories
1. General tread aluminum alloy plate:
1060 aluminum plate for the plate from the processing of aluminum alloy pattern plate, able to adapt to the normal environment, low prices.
Usually cold storage, flooring, packaging and more use of this pattern aluminum sheet.
2. Al-Mn alloy tread plate:
3003 as the main raw material processing, the aluminum plate, also known as rust-proof aluminum, the strength is slightly higher than the ordinary aluminum alloy pattern plate, with a certain anti-rust properties, but the hardness and corrosion resistance less than 5,000 series of pattern plate, so the product is not strictly used in the anti-rust, such as truck models, cold storage floor.
3. Aluminum-magnesium alloy tread plate:
5052 or 5083, such as 5000 series of aluminum as raw material processing, with good corrosion resistance, hardness, anti-rust performance.
Usually used in special places, such as ships, cars lights, humid environment, the high hardness of aluminum, a certain load-bearing capacity.
In accordance with the different patterns of aluminum plate classification: pattern plate has a bar, two bars, three bars and five bars.
